Tangential Head - RT20

Side Thread Rolling Attachment


For left hand threads, the same rolling attachment can be used as for right hand threads.

Left hand threads require left hand rolls.

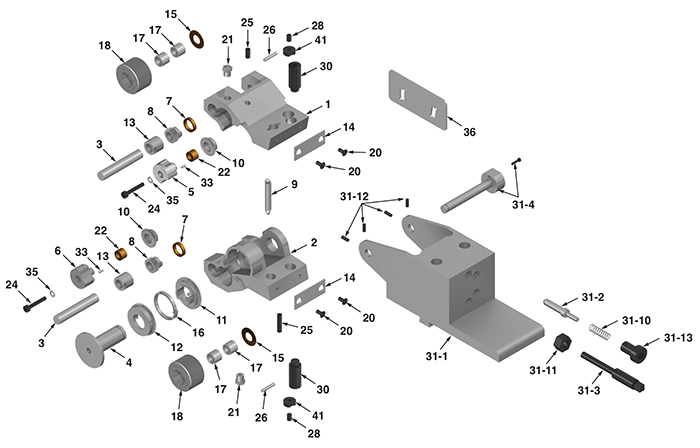

Spare Parts

** Sold as an assembly only

*(#1 & #2 Arm Assy) (#11, 12 & 16 gear w/Coil Spring Assy)

#31, 31-1, 32 - Per Application


Important Note: When ordering rolling attachments, spare parts, rolling attachment holders, setting gauges and thread rolls of the same type as previously supplied, it is absolutely necessary to state the marking on this attachment, size and serial number.
