Circular Chaser DRSA-Biltz

Solid Adjustable (Non-Opening) Circular Chaser Diehead

RSVP Tooling offers a special version of the DRSA with an integral Biltz style shank for use in #2 QC tool holders. This option provides the versatility of combining the external threading tool with tension and compression type holders where necessary in your operation similar to those available for tapping operations.

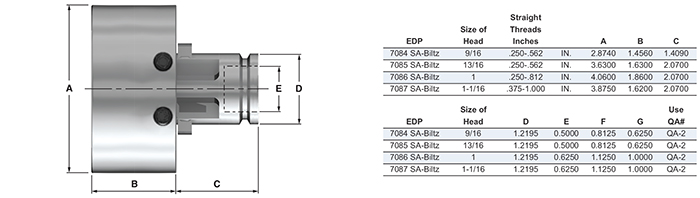

Diehead Overview

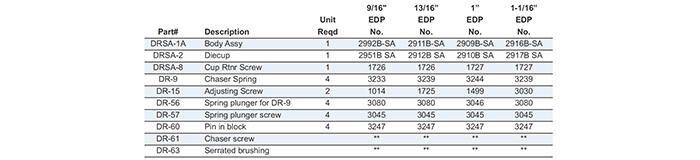

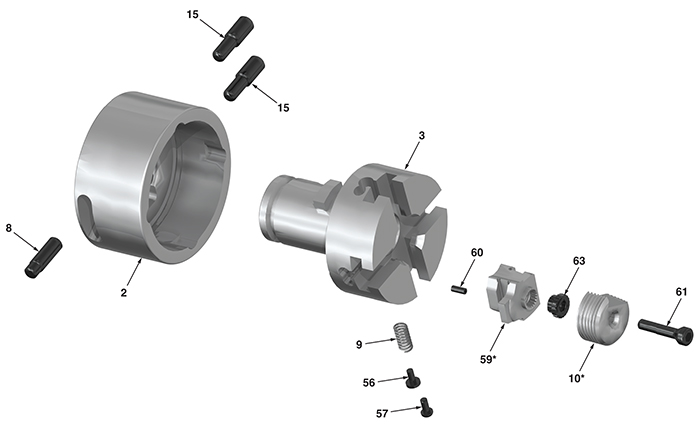

Componet Part Breakdown

* See Circular Chaser & Block Section for available standard block and chaser sizes.

** See DR61 for available standard chaser screws.

** See DR63 for available standard chaser serrated bushings.
