RE-8 Radial Diehead

Radial Thread Rolling Heads
Standard Shank Style Illustrated
Flange Mounting Also Available

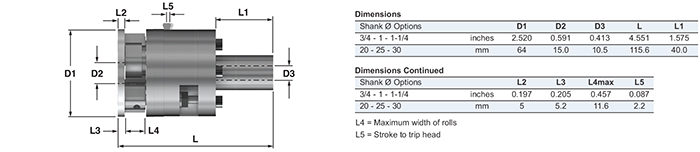

Diehead Overview

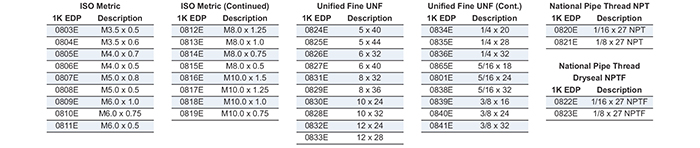

The Following Thread Rolls May Be Ordered As Standard Rolls

The range of sizes shown can normally be safely rolled on the RE-8 head.

For thread forms other than those listed, please contact our technical department

Thread rolls are supplied as standard to suit right hand heads. This refers to the direction of rotation of the spindle and not the thread itself. Both right and left hand threads can be rolled using the same head; only the rolls are changed.

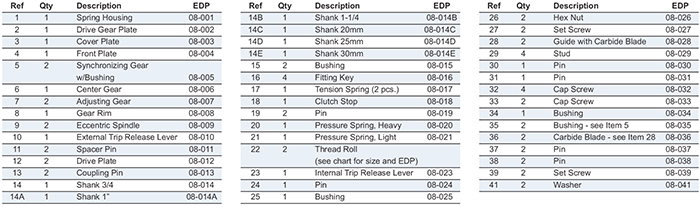

Componet Part Breakdown
