Circular Chaser DRSA

Solid Adjustable (Non-Opening) Circular Chaser Diehead

The DRSA is a light solid adjustable diehead for use with circular chasers where reversing of the machine spindle is preferred over opening of the diehead. Popular uses include CNC machining centers and Rotary Transfer machines.

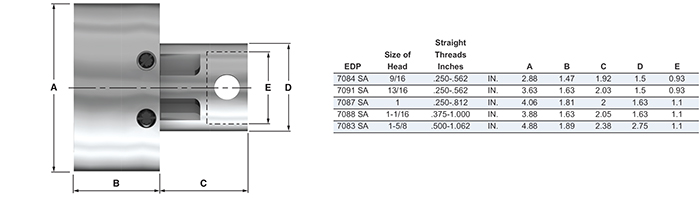

Diehead Overview

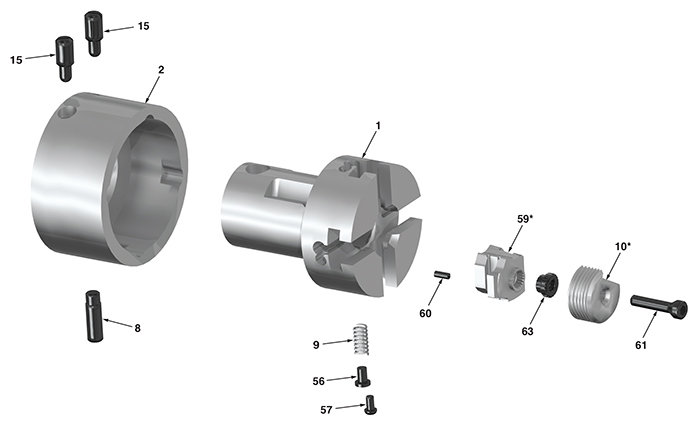

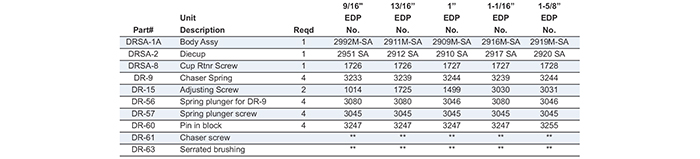

Componet Part Breakdown

* See Circular Chaser & Block Section for available standard block and chaser sizes.

** See DR61 for available standard chaser screws.

** See DR63 for available standard chaser serrated bushings.
