Circular Chaser DRF Diehead

Self Opening for Revolving Dieheads

The style DRF is a 5-chaser diehead for use on machines having a revolving spindle. There are only three main parts the body, cup and adjusting plate. Pitch diameter adjustment is easy and positive, all chasers are simultaneously actuated without disturbing the setup. The head is suitable for either right-or left hand threading. Opens and closes by means of external yoke spool. Chasers are interchangeable with those of DSF dieheads of same capacity. RSVP Tooling’s exclusive modular shank dieheads provide the ability to choose the specific shank adapter suitable for your machine or for use in multiple machines. The shank adapter option also minimizes cost associated with shank replacement due to common wear and use.


See shanks page for available shank options.

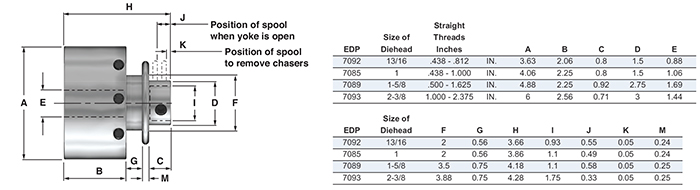

Diehead Overview



Componet Part Breakdown

* See Circular Chaser & Block Section for available standard block and chaser sizes.

** See DR61 for available standard chaser screws.

** See DR63 for available standard chaser serrated bushings.
