Circular Chaser DRD Diehead

For Limited Length Clearance

For use on Davenport automatics, rotary transfer and other machines with limited clearance. This diehead meets the need for a short bodied, revolving tool that has all the features incorporated in RSVP dieheads. The simplicity of the heads three main parts assures longer life and economy of operation with sustained accuracy. RSVP Tooling’s exclusive modular shank dieheads provide the ability to choose the specific shank adapter suitable for your machine or for use in multiple machines. The shank adapter option also minimizes cost associated with shank replacement due to common wear and use.

Diehead Overview

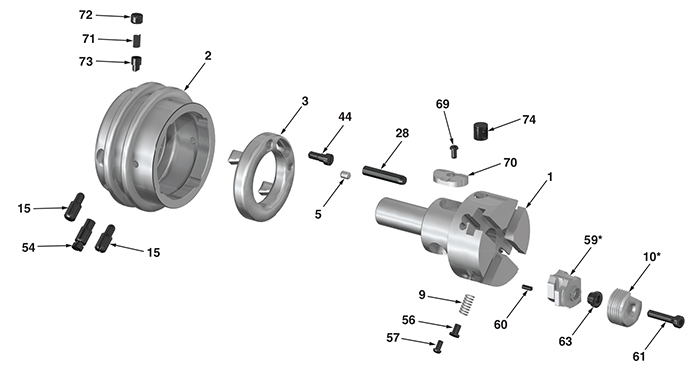

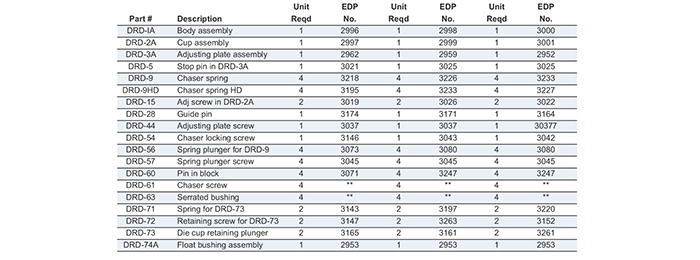

Componet Part Breakdown



*** (DRD 4 chaser diehead same as DR 4 chaser diehead) ***

* See Circular Chaser & Block Section for available standard block and chaser sizes.

** See DR61 for available standard chaser screws.

** See DR63 for available standard chaser serrated bushings.
