Rollerbox Overview & Specifications



Our Rollerbox tooling has a capacity from .0625 to 2.0 over 5 different style heads.



All our Rollerbox tools feature an auto-retraction which leaves the machined part burnished by the supporting rollers.



Integral tipholders can hold a variety of cutting geometry’s for virtually any material making the tools extremely versatile. The micro adjustment of the cutting insert makes it easy to setup and 100% repeatable.



We carry in stock a wide range of metric and inch shanks.



An ideal tool for pre-turning your blank diameter prior to thread rolling to a 2 micron finish.

Turns long parts down quickly and accurately in one pass.

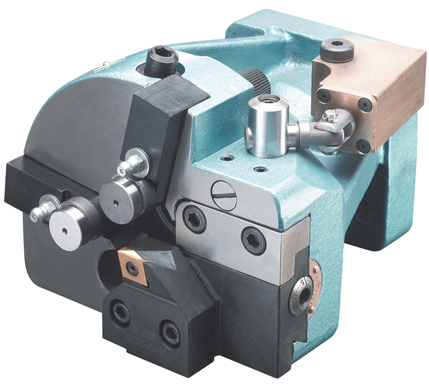

RSVP Tooling, Inc. - Specialty Tools - Rollerbox - Overview & Specifications Head View 1

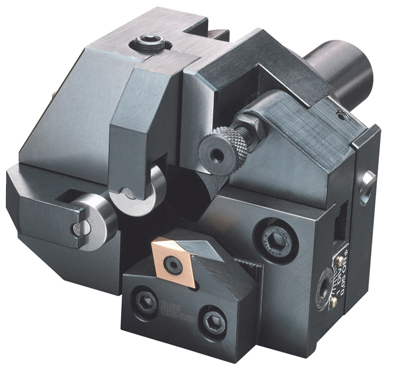

RSVP Tooling, Inc. - Specialty Tools - Rollerbox - Overview & Specifications Head View 2

Most Popular Rollerbox Head Specifications

Our Rollerbox turning system is the most effective means of producing accurate, true and parallel diameters with maximum repeatability.

AR/00M Rollerbox:

The smallest Rollerbox in the range, but with all the functions as the bigger heads; auto-retraction, integral tipholder capable of holding indexable inserts with a variety cutting geometrics, micro adjustment of size and a range of metric and imperial shank sizes.

Suitable for a variety of single and multi-spindle autos and small C.N.C lathes.

Capacity:



Metric: 1.5mm-10mm

Imperial: 1/16’’ - 3/8’’

Shank Diameters:



16 mm, 20mm, 25mm and 5/8’’, 3/4’’ and 1’’



AR/T0 Rollerbox:

Slightly larger Rollerbox with more capacity, but offering the same facilities of auto-retraction integral tipholder taking triangular or rhomboidal inserts with a variety of cutting geometrics, micro-adjustment of size and a range of metric and imperial shank sizes.

Suitable of small diameter turning CNC lathes. Mainly used a single and multi-spindle autos and CNC.

Capacity:



Metric: 3mm-14.5mm

Imperial: 1/8’’ – 9/16’’

Shank Diameters:



16mm, 20mm, 25mm and 5/8’’, 3/4’’, 1’’



AR/T9 Rollerbox:

The most popular and versatile mid-range Rollerbox
offering integral tipholders to suit both the triangular or rhomboidal shaped indexable inserts, along with auto-
retraction, micro adjustment of size and a range of metric and imperial shank sizes.

Extensively used on a variety of small automated and
conventional capstan lathes and small CNC machines
also single and multi-spindle autos including:

Capacity:



Metric: 4mm – 19mm

Imperial: 13/64’’ – 15/16’’

Shank Diameters:



20.25.32.40.50 mm and 3/4”, 1”, 1-1/4”, 1-1/2”, 1-3/4”, 2”, and 2-1/8’’



Other Rollerbox styles and sizes available

Various styles of inserts are available to suit different
cutting conditions including a range of grades. Check our web page for set-up and trouble shooting guides.
